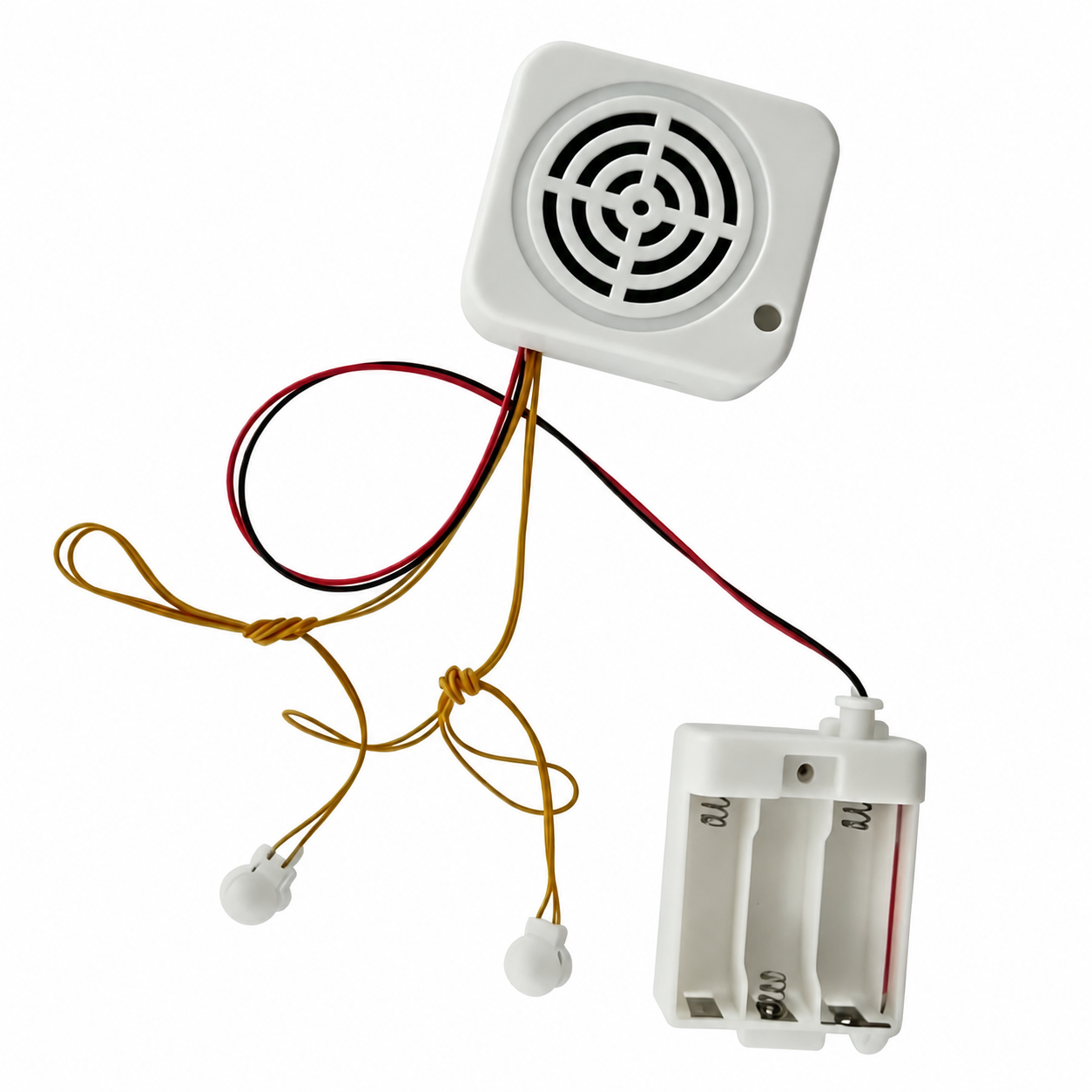

Voice Recorder Toy Module Box
Local-only Audio Interactive Companion Solution
Offline · No Cloud
|
| Core Positioning |
A standalone recording & playback module designed for plush toys, plastic figurines, silicone gifts, and decorative ornaments.
Provides physical button‑based interaction, voice recording replay, preloaded nursery rhymes / stories, with low power consumption
and offline permanent storage. Suitable for factory wholesale and full customization.
|
| Optional Configurations |
-
Power supply option: Standard 3×AA dry battery holder (batteries not included) / Built‑in 1000mAh rechargeable Li‑ion version with charging protection.
-
Recording duration options: 15 seconds (default) / 30 seconds / 60 seconds per single record.
-
Preloaded content style: Nursery rhymes / bedtime stories / early education / bilingual themes; bulk reprogramming available per request.
-
Button wire harness length: Default 150mm / Customized up to 300mm for large toys.
-
Prompt & beep customization: Startup/shutdown tones, record start/end beeps, mode switch sounds.
|
| Basic Hardware Specifications |
-
Main Control Chip: Dedicated main processor for recording interaction (integrated ADC/DAC, local flash controller).
-
Battery Specification: Standard 3×AA dry batteries (4.5V) or optional built‑in 3.7V/1000mAh rechargeable lithium battery version.
-
Audio Configuration: High‑fidelity speaker (4Ω 2W~3W selectable) + noise‑reducing pickup microphone.
-
Interaction Mode: Dual lead‑wire independent button control. Two external button wires can be sewn or glued onto toy hands (or belly) to trigger corresponding functions by pressing.
-
Product Dimension: Core module 56×50×25mm with separate independent battery compartment (dry cell holder 30×40×18mm / Li‑ion version integrates on board bottom). Compact design for easy installation inside all types of toys.
-
Storage Medium: Onboard local Flash (≥16MB) – preloaded audio library + recording partition, data retains permanently after power‑off.
|
| Language & Storage Configuration |
-
Supported Languages: Preloaded with nursery rhymes and bedtime stories (default English/Chinese); bulk language content reprogramming available upon request (e.g., Spanish, French, German, Japanese, Korean).
-
Data Deployment: Built‑in local flash memory; recorded audio saves permanently after power‑off without any cloud storage requirement — fully offline and privacy‑protected.
-
Content Extension: Audio library can be batch‑updated via programmer tool (suitable for seasonal themes, IP collaboration, etc.).
|
| Core Functions & Interactive Logic |
-
Locally solidified audio library: Abundant pre‑stored nursery rhymes and early education stories. Hardware‑based button logic gives instant response without latency.
-
Left Button (Record / Replay):
- Long press (2 sec) → start voice recording (short beep prompt). Maximum recording length depends on selected version: 15s / 30s / 60s. Long press again or auto‑stop when limit reached (double‑beep end prompt).
- Short press → replay the most recent recording (recording is saved permanently, survives power cycles).
-
Right Button (Music / Story dual mode):
- Single click → play / pause the current preloaded audio (resume from last position).
- While playing, another single click → skip to next track.
- Long press for 2 seconds → toggle between Music Mode and Story Mode (each mode has independent playlists and playback memory).
-
Status & Power Management: Buzzer + voice prompts for state feedback (low battery voice alert). Auto standby after 30 seconds of inactivity (dry‑cell version static current <10µA).
- Recording automatically blocks other playback actions; robust anti‑misoperation design.
|
| Customization Service |
-
Custom preloaded audio content: Branded nursery rhymes, stories, welcome phrases (e.g., “Hello, I’m your new friend”). IP‑based audio injection supported.
-
Extended recording duration: Selectable 15s / 30s / 60s (default 15s) – capacity evaluation available for longer durations.
-
Custom timbre and prompt beep sounds: Real voice recording for startup greeting, mode switch sound, or custom childlike/voice‑changer effects.
-
Custom button trigger logic & wire harness length: Adjust debounce timing, long‑press duration, and harness length (up to 300mm).
|
| Applicable Scenarios |
Plush toys, plastic toys, silicone products, doll pendants, holiday gift ornaments, interactive soft puppets, custom promotional giveaways. |
